| Lugar de origem: | Guangdong, China |
|---|---|
| Marca: | OPTFOCUS |
| Certificação: | ISO9001 ANATEL CE |
| Número do modelo: | OFSX624-VWU |
| Quantidade de ordem mínima: | 1 parte |
| Preço: | USD15-25/UNIT EXW CHINA |
| Detalhes da embalagem: | 40pcs/box |
| Tempo de entrega: | 10 dias úteis |
| Termos de pagamento: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Habilidade da fonte: | 50000 PCes pelo mês |
| relação da Acima-relação: | 1 relação de XPON, modo do SC taxa da fibra RX 2,488 Gbits/s do único única e TX 1,244 Gbits/s (GPON | Modo: | XPON |
|---|---|---|---|
| Poder ótico: | dBm 0~4 | Sensibilidade: | -28 dBm |
| Diodo emissor de luz do indicador: | 9 PCes | Temperatura de funcionamento: | -5~+55℃ |
| dimensão (milímetros): | 188*125*35mm (unidade central) | Garantia: | 1 ano |
| Palavras-chaves: | zte f660 Ontário |
Wholesale ftth 4lan tel with big covering area wifi ONU with wifi hybird GEPON similar to zte f660 ont

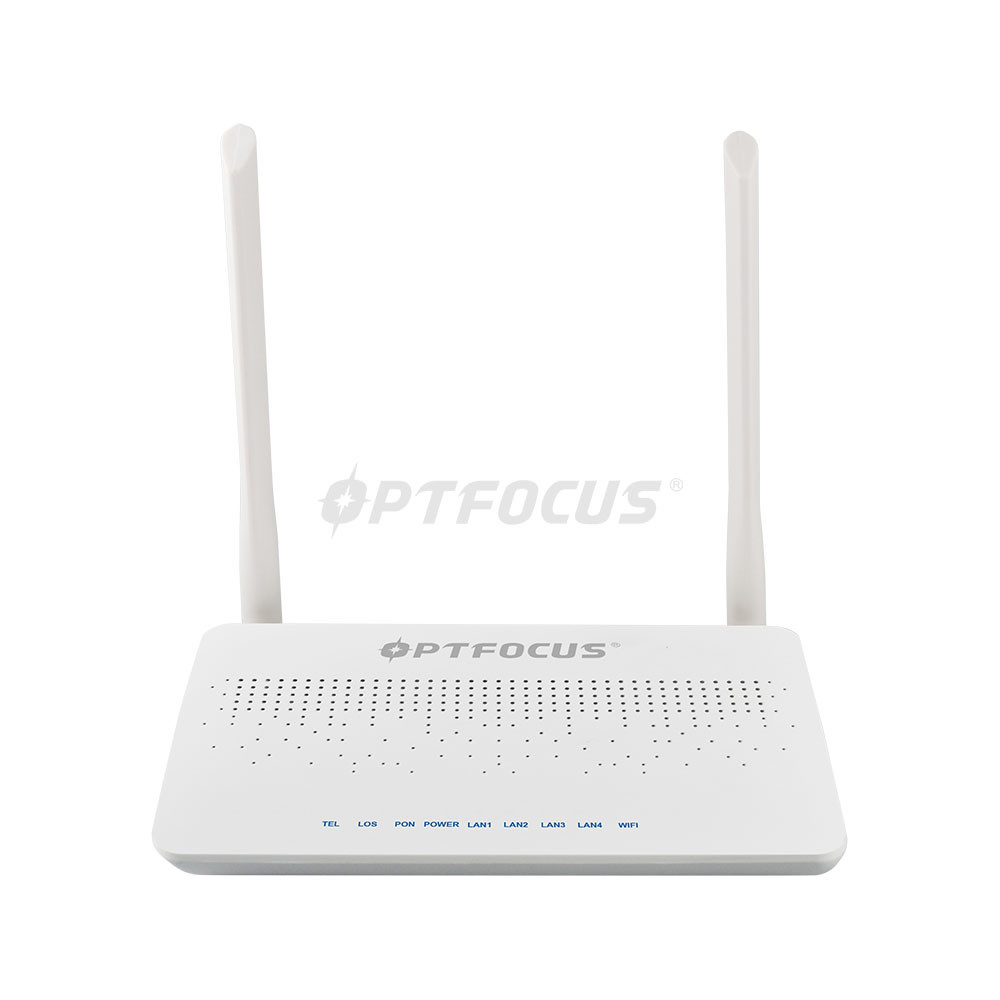

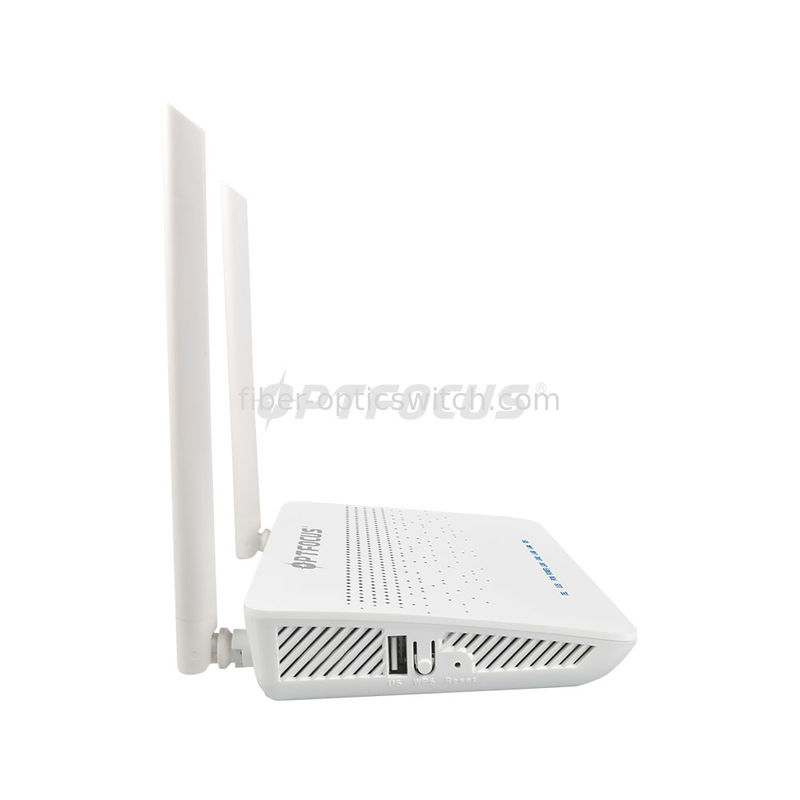

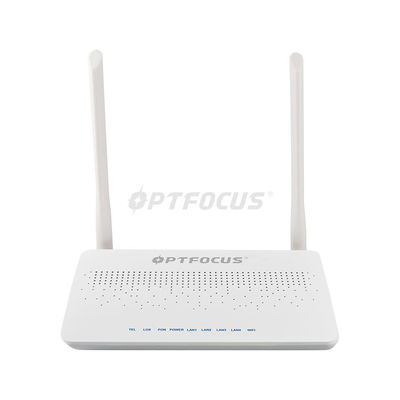

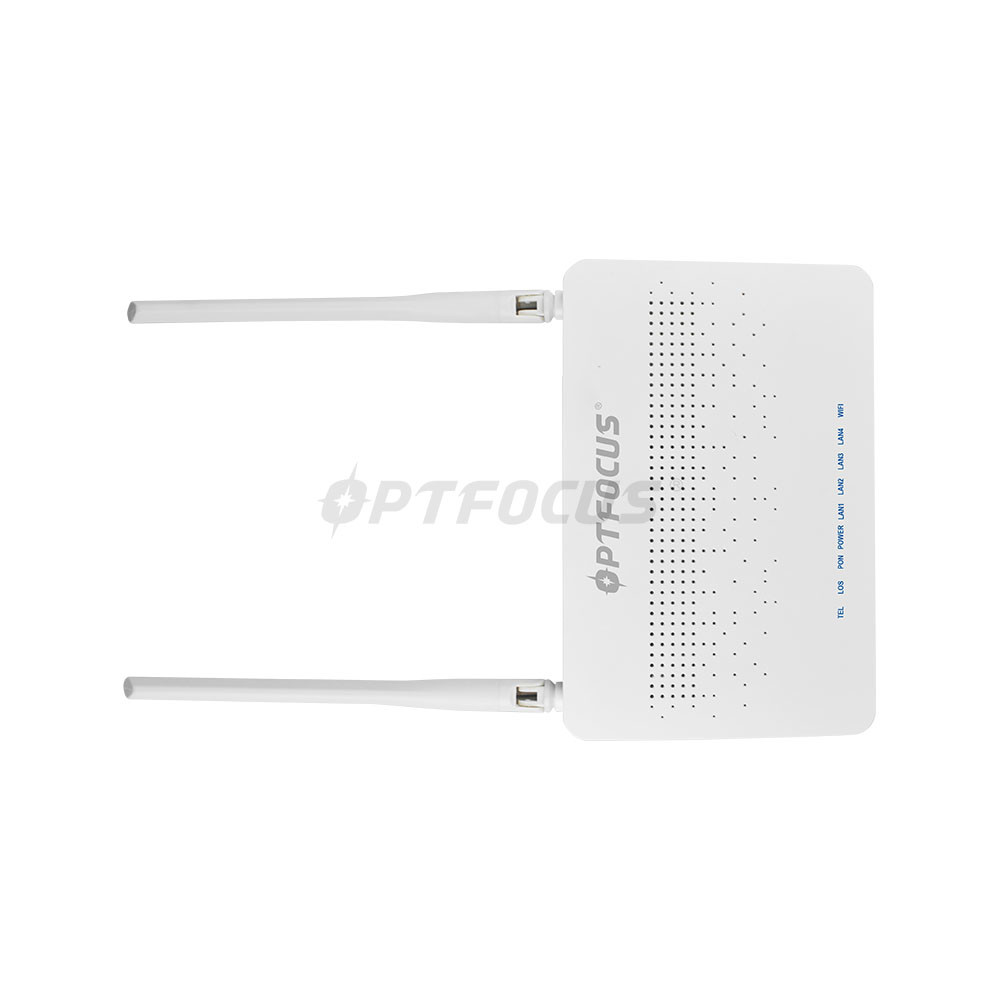

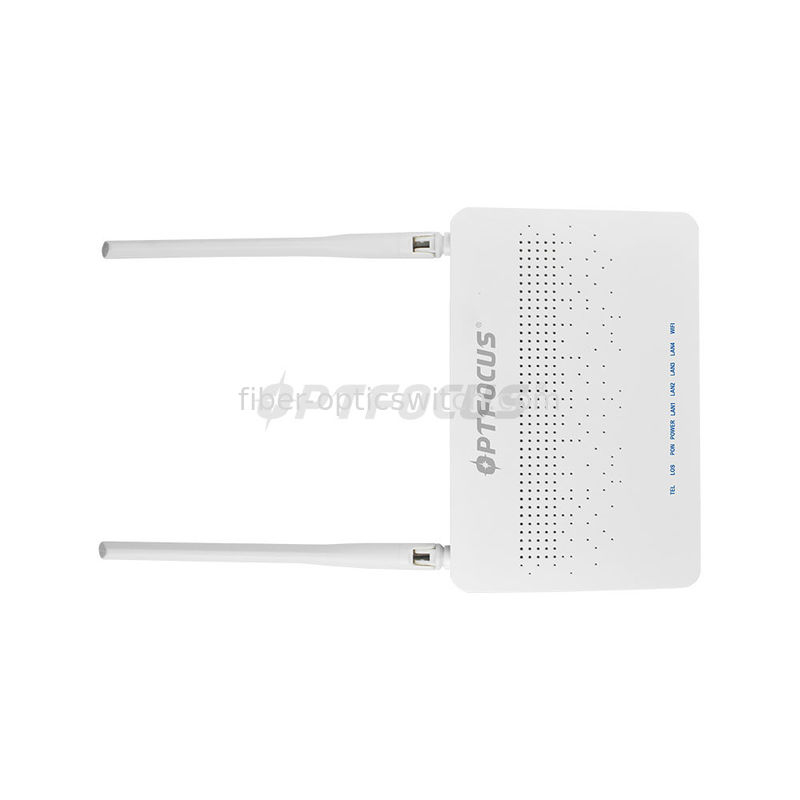

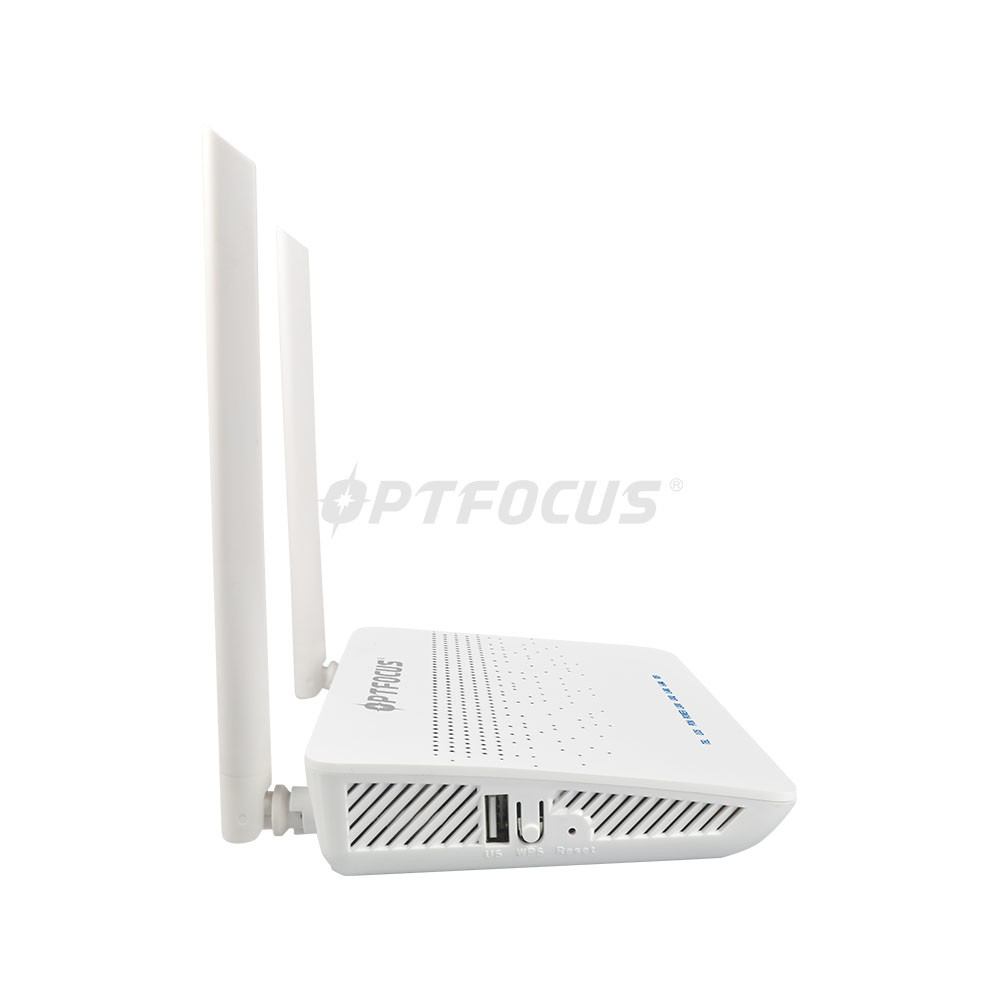

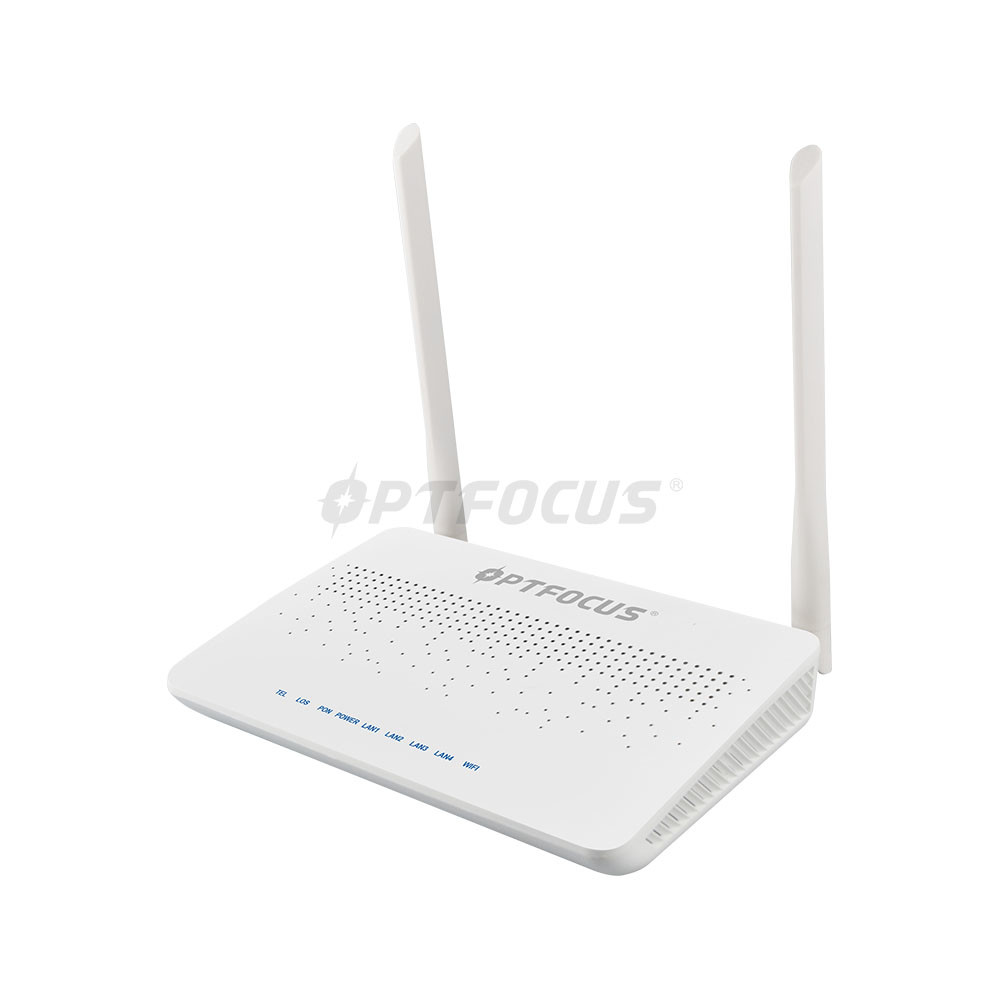

OFSX624-VWU

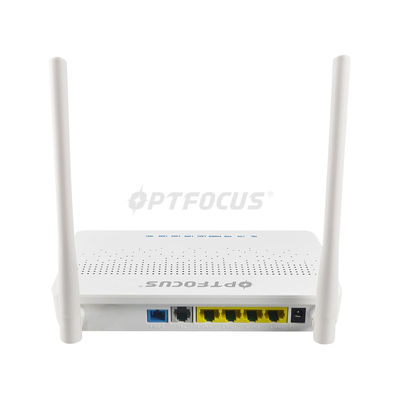

1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution
Description:
OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
BASIC CHARACTERISTICS:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |

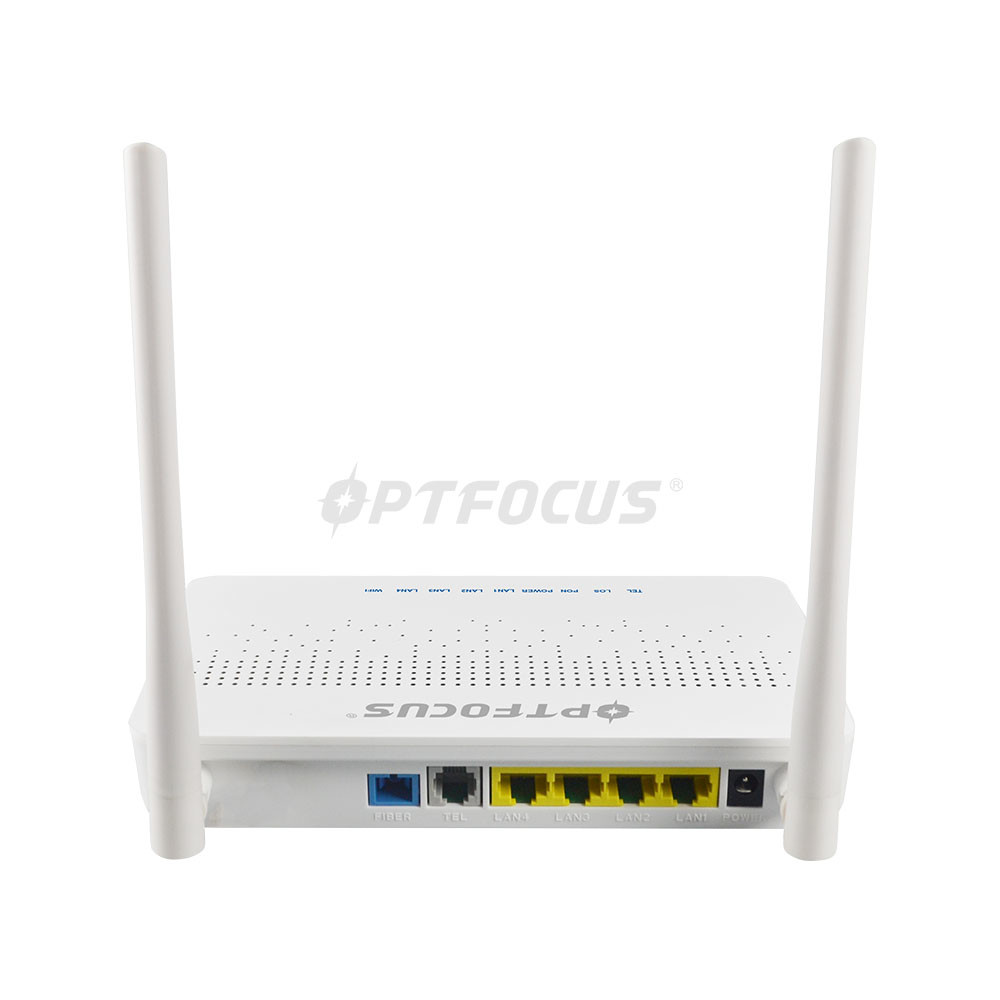

| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS:
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
VOIP TECHNICAL FEATURE:
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
CERTIFICATES:
RELATED PRODUCTS:
COMPANY INFORMATION:
EXIHIBITION SHOW:
CONTACT US:
For more details, such as OEM ODM, Price and shipping. Please contact our sales team without hesitation. Our passionated teamate will serve you nicely.
